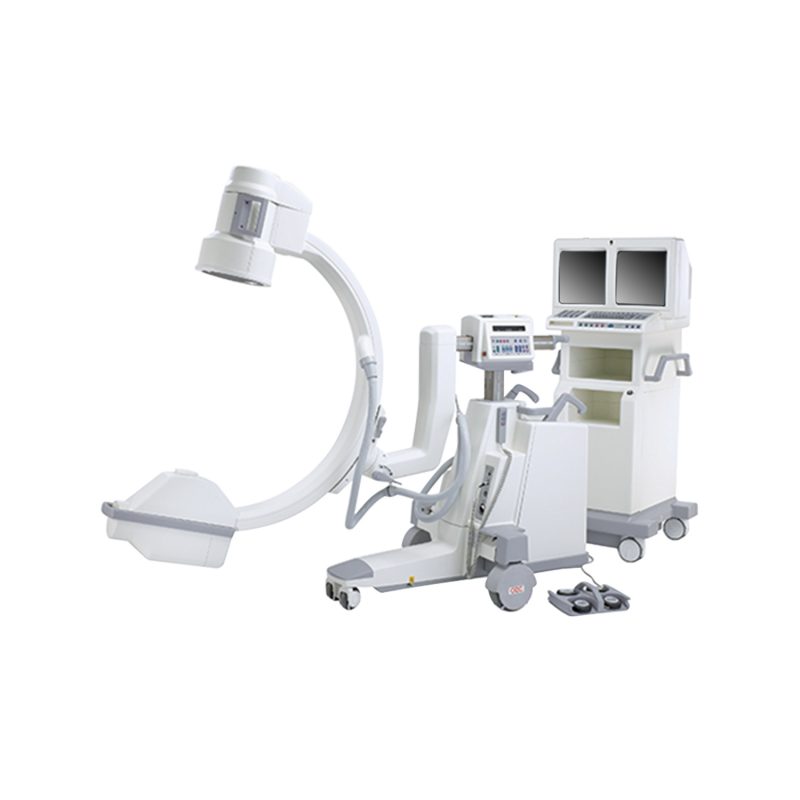

OEC 9600 C-arm

OEC 9600 C-arm was manufactured between 1996-2000 by OEC Medical Systems and continues to be a reliable and cost effective solution for facilities worldwide.

OEC 9600 C-arm X-ray Tube:

  • Rotating anode X-ray tube Focal spots: 0.3 – 0.6mm
  • 300,000 HU Anode heat capacity

OEC 9600 C-arm Image Intensifier: 9/6/4 Tri-mode Image Intensifier

OEC 9600 Specifications:

  • High resolution CCD Camera
  • Workstation w/dual 16″ square, flicker free monitor
  • 200 image store w/last image hold
  • 640X512X10 bit MARS (Motion Artifact Reduction)
  • Track Pad w/superkey
  • Patient annotation keyboard
  • Digital window/level Real time auto histogram Negate Patient directory with minified image scroll Anatomical marker

OEC 9600 C-arm Physical Specifications:

  • Free space in Arc: 31″
  • Depth of Arc: 26″
  • Arc orbital movement: 115 Degrees
  • Left/Right wig-wag scan: +/- 11 Degrees
  • Vertical Travel: 18″
  • motorized Horizontal travel: 8″
  • L-arm rotation: +/- 180 degrees
  • C-arm Dimensions: Length: 78.5″ Height: 68.25″ Width: 33″
  • Workstation Dimensions:  Width: 27.25″ Height: 68.25″ Depth: 27.25″
  • MONITORS: Dual 16″ square, black etched, anti-glare, anti-static monitors 525/625 lines/ fast Scan flicker free
  • 73 Hz non-interlaced VGA compatible Ambient room light sensor
  • Multi-LED X-ray “ON” indicator Remote Window/Level controls

OEC 9600 C-arm Warranty: 1-5 year warranty packages available
